DE4001, Onyx I²C bus and SPI bus host USB adapter
0 yorum
Kategori
Marka
Üretici Kodu
DE4001
Fiyat
330,00 USD + KDV
Havale
15.113,55 TL
(%3,00 havale indirimi)
15.580,98 TL

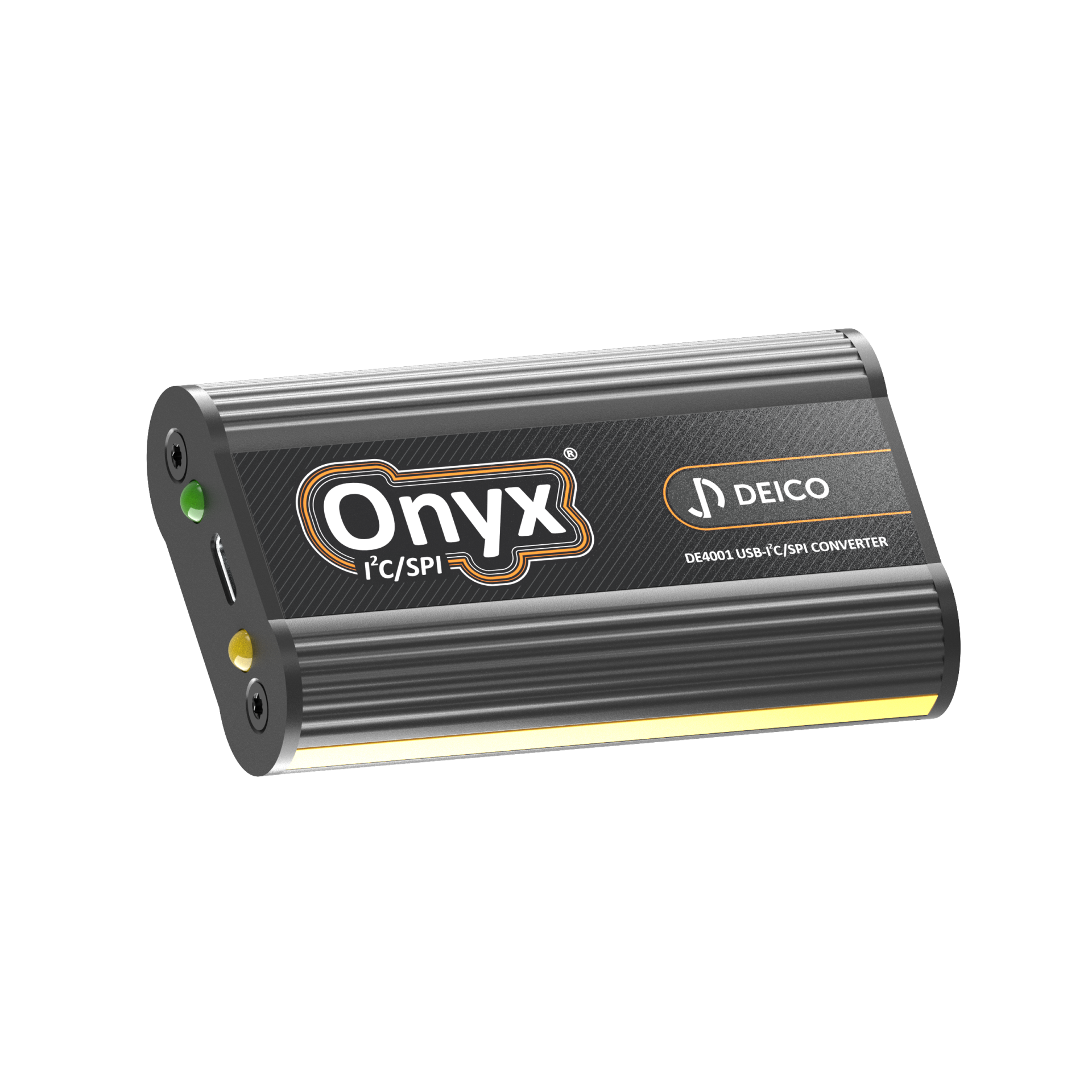

DE4001 DEICO Onyx is an I²C bus and SPI bus host adapter which allows to communicate with any I²C or SPI devices via USB. DEICO Onyx is powered directly from the PC’s USB port. DEICO Onyx can be used as a master or slave for I²C and SPI. I²C and SPI pins can also be used as GPIO or combined with I²C or SPI functionality.
The general features of DEICO Onyx are listed below:
Plug and play with DEICO serial center
The device is powered by USB
Master or slave mode
Asynchronous slave transmit and receive
I²C interface supports various speeds from 100kHz to 3.4MHz
I²C interface supports multi-master
I²C interface internal pull-up resistors
SPI interface supports various speeds from 200kHz to 25MHz
SPI interface full duplex transmit and receive
SPI interface software configurable slave select polarity
I²C and SPI pins can be used as GPIO or combined with I²C or SPI
Areas of application include:
EEPROMS
Flash
Temperature Sensors
Accelerometers
